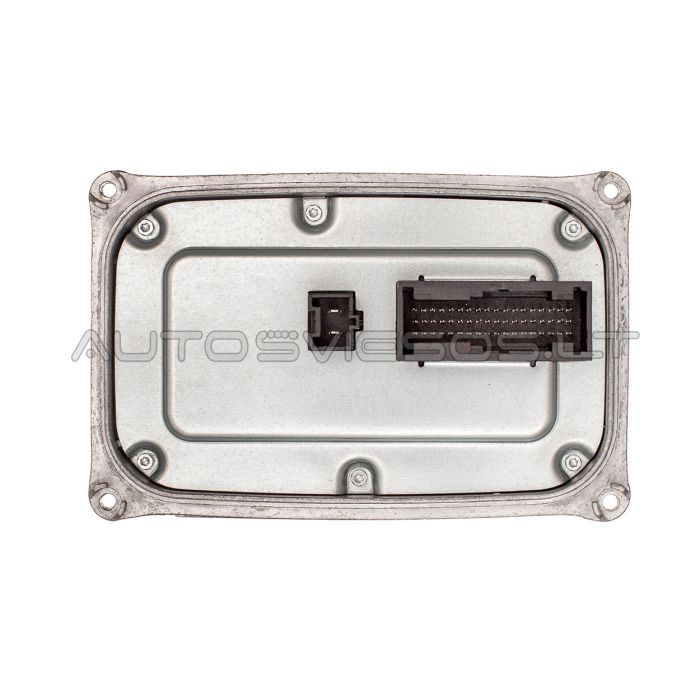

A2129005424 LED Blokas

A2129005424 LED valdymo ir uždegimo blokas

Continental A2129005424 sviesu blokas yra naudojamas su pilno LED žibintais ir su Intelligent Light System ILS funkcija.

Nebedega Mercedes Benz dienos šviesos arba prietaisų skydelis rodo klaida dėl dienos šviesų ar neveikia posūkiai tuomet reikės pakeisti sugedusi bloką.

A212 900 54 24 LED modulis taip pat gali būti atsakingas ir už kitas funkcijas tokias kaip LED šviesų aukščio reguliavimas.

Po Continental A2C73610906 pakeitimo reikės priprogramuoti detalę.

Dazniausiai pasitaikancios diagnostikos klaidos

• B1FB201 The temperature sensor 2 of headlamp range adjustment (HRA/LWR) control modulel is faulty. A general electrical fault exists
• B285711 The output for standing light 1 has a malfunction. There is a short circuit to ground
• B286011 The output for the daytime runniing light has a malfunction. There is a short circuit to ground
• B238601 Fan 1 of the control unit has a malfunction. There is a general electrical fault
• B178387 Right front LED exterior lighting actuation module fault - missing message
• B1FB201 Temperature Sensor 2 of Headlamp range adjustment has a malfunction.  There is a general electrical fault
• B238601 Fan 1 of the control unit has a malfunctio. There is a general electrical fault
• B210F14 Input Circuit 30 has a malfunction. There is a short circuit to ground and an open circuit
• B1FB801 Temperature sensor 3 of the control unit Actuation module, LED exterior lighting, left front has a malfunction. There is a general electrical fault
• B285713 The output for standing light 1 has a malfunction. There is an open circuit
• B286013 The output for the daytime running light has a malfunction. There is an open circuit
• U118B00 Communication with Control Unit Right Headlamp Has A malfunction
• U118B00 Communication with Control Unit Right Headlamp Range Adjustment has a malfunction
• U118A00 Communication with control unit Left headlamp has a malfunction
• U118B87 Communication with control unit Right Headlamp range adjustment has a malfunction. The message is missing

Dazniausiai pasitaikancios Mercedes-Benz klaidos

• Adapt. main beam system inoperative
• Adaptive Highbeam Assist Plus Inoperative
• Intell. Light System Inoperative
• Intelligent Light System inoperative
• ILS ohne Funktion
• Intell. Light System ur funktion
• Intell. Light system virker ikke
• Intell. Light system ne fonctionne pas
• Intell. Light System ohne Funktion
• Intell. Light system no funciona
• Intell. Light system guasto
• Intell. Light system functioneert niet
• Intell. Light system nieaktywny
• Sis. Luzes inteliente inoperacional
• Intell. Light System ur funktion
• Front left indicator
• Front right indicator
• Check front left turn signal
• Check front right turn signal
• Front right parking lamp
• Front left parking lamp
• Check Front Left Parking Lamp
• Check Front Right Parking Lamp
• Front left daytime driving lamp
• Front right daytime driving lamp
• Left Dipped Beam
• Right Dipped Beam
• Check Left Low Beam
• Check Right Low Beam
• Left daytime driving lamp
• Right daytime driving lamp
• Parklicht vorne links
• Parklicht vorne rechts
• Blinker vorne links
• Blinker vorne rechts
• Abblendlicht links
• Abblendlicht rechts
• Tagfahrlicht links
• Tagfahrlicht rechts
• Luz estacionamiento delantera izquierda
• Luz estacionamiento delantera derecha
• Luz de cruce izquierda
• Luz de cruce derecha
• Luz de marcha diurna izquierda
• Luz de marcha diurna derecha
• Feu stationnement avant gauche
• Feu stationnement avant droit
• Feu croisement gauche
• Feu croisement droit
• Clignotant avant gauche
• Clignotant avant droit
• Eclairage de jour gauche
• Eclairage de jour droit
• Halvljus vänster
• Halvljus höger
• Parkeringsljus vänster fram
• Parkeringsljus höger fram
• Varselljus vänster
• Varselljus höger
• Medios direita
• Medios esquerda
• Illumin. diurna esq.
• Illumin. diurna dir.
• Prawe swiatlo mijania
• Lewe swiatlo mijania
• Lewe przednie swiatlo parkingowe
• Prawe przednie swiatlo parkingowe
• Lewe swiatlo dzienne
• Prawe swiatlo dzienne
• Parkeerlicht linksvoor
• Parkeerlicht rechtsvoor
• Dimlicht rechts
• Dimlicht links
• Dagverlichting links
• Dagverlichting rechts
• Anabbagliante destro
• Anabbagliante sinistra
• Luce diurna SX
• Luce di parcheggio anteriore sinistra
• Luce di parcheggio anteriore destro
• Parkeringslys foran til venstre
• Parkeringslys foran til hojre
• Blinklys foran til hojre
• Blinklys foran til venstre
• Drejelys til hojre
• Drejelys til venstre
• Kørelys til venstre
• Kørelys til hojre

Programinės ir techninės įrangos kodai:

• HW-NR A2129014406
• SW-NR A2129024008

Mercedes-Benz detalės kodai:

• A2129005424
• A212 900 54 24

Continental detalės kodai:

• A2C73610906

Daugiau pakeičiamų kodų

• A2189006604 A218 900 66 04 A2C74252903
• HW-NR A2189012101 SW-NR A2189026201
• A2189009904 A218 900 99 04 A2C74252905
• HW-NR A2189012101 SW-NR A2189027901
• A2129005424 A212 900 54 24 A2C73610906
• HW-NR A2129014406 SW-NR A2129024008
• A2129008222 A212 900 82 22 A2C73610904
• HW-NR A2129014406 SW-NR A2129028707
• A2129008324 A212 900 83 24 A2C73610905
• HW-NR A2129014406 SW-NR A2129024908
• A2189000406 A218 900 04 06 A2C74767503
• HW-NR A2189012501 SW-NR A2189025403
• A2129005311 A212 900 53 11 A2C73610902
• HW-NR A2129014406 SW-NR A2129020205
• A2189008108 A218 900 81 08
• SW-NR A2189012501 HW-NR A2189021706
• A2129003317 A212 900 33 17 A2C7310903
• HW-NR A2129014406 SW-NR A2129026106
• A2189007307 A2C75659702
• HW-NR A2189015801 SW-NR A2189021306

Tinkami Mercedes-Benz E class W212 S212 Facelift Intelligent Light System LED zibintai

• A2129062903 1LX011066-83
• A2128205639 1EX011066-56
• A2129063003 1LX011066-84
• A2129064103 1LX011066-95
• A2128209559 1LX011066-49
• A2129063303 1EX011066-85
• A2128202439 1EX011066-28
• A2128202339 1EX011066-27
• A2129063103 1EX011066-81
• A2128200959
• A2128205539 1EX011066-55
• A2128209759
• A2129064303
• A2128205839 1EX011066-60
• A2128205439 1LX011066-58
• A2128202639 1LX011066-30
• A2128209659 1LX011066-50
• 1LX011066-691
• 1LX011066-69

Tinkami Mercedes-Benz E class C207 A207 Facelift Intelligent Light System LED zibintai

• A2078208761 1LX011091-33
• A2078208861 1LX011091-34
• A2079064100 1LX011091-63
• A2078201859 1EX011091-56
• A2078201459 1EX011091-52
• A2079064000 1EX011091-62
• A2079063900 1EX011091-61
• A2079064400 1EX011091-66
• A2079065400 1EX011091-94
• A2078208561 1EX011091-31
• A2078208661
• A2079065500 1LX011091-95
• A2079064200 1LX011091-64

Tinkami Mercedes-Benz V class W447 Vito LED ILS zibintai

• A4479064800 1LX011284-43
• A4479065400 1LX011284-63
• A4479064900 1LX011284-44
• A4479060201 1EX011284-66
• A4479063301 1EX011284-12
• A4479063901 1EX011284-30
• A4479060401 1LX011284-68
• A4479063201 1EX011284-11
• A4479063701 1LX011284-40
• A4479063401 1LX011284-13
• A4479061601 1LX011284-83
• A4479069800 1EX011284-46
• A4479060301 1LX011284-67
• A4479063501 1LX011284-14
• A4479061701 1LX011284-84
• A4479061801 1EX011284-81
• A4479062501 1LX011284-93
• A4479069900 1LX011284-47

Tinkami Mercedes-Benz GLS X166 GLE W166 Facelift C292 Intelligent Light System LED zibintai

• A1668200859 F00HTM903801
• A1669062203 F00HTM700803
• A1669062903 F00HTM701502
• A1669064703 F00HTM703300
• A1669064803 F00HTM703400
• A1669062803
• A1669063203 F00HTM701802
• A1669064503
• A1669064603
• A1668200959
• A1669062103 F00HTM700703
• A1669067502 F00HTM700702
• A1669064103
• A1668209861
• A1669067602 F00HTM700802
• A1669067802
• A1669065403
• A1669062403
• A1669067702 F00HTM700902
• A1669063903 F00HTM702500
• A1669064003 F00HTM702600
• A1669064203 F00HTM702800

Tinkami Mercedes Benz CLS C218 X218 Facelift Multibeam zibintai

• A2189067202 030129123409
• A2189067102 030129123309
• A2189060102 030129123307
• A2189067402 030129163409
• A2189060302 030129163307
• A2189060202 030129123407
• A2188204159 1307024294AB
• A2188204259 130702429500
• A2189067302 030129163309

Tinkami Mercedes Benz CLS C218 X218 LED High Performance zibintai

• A2189067802 030129123208
• A2189067702 030129123108
• A2188200159 030129123100
• A2188200259 030129123200
• A2188203659 130702431500

Tinkami Mercedes-Benz B class W246 Facelift LED High Performance zibintai

• A2469065501 030129563103
• A2469065601 030129563203
• A2469062801 030129523202
• A2469062901 030129563102
• A2469066401 030129563205
• A2469063001 030129563202
• A2469066301 030129563105
• A2469066201 030129523205
• A2469065401 030129523203
• A2469063401 130702434101
• A2469065301 030129523103
• A2469063301 130702434001
• A2469067001 030129523204
• A2469063501

Mercedes-Benz automobiliai, kurie naudoja bloką

• W246 Facelift
• 2015 2016 2017 2018
• B180 B200 B220 B250 BlueEfficiency 4MATIC Petrol Gasoline
• B160 B180 B200 B220 CDI BlueEfficiency diesel
• CLS C218 Coupe Facelift
• CLS X218 Shooting Brake Facelift
• 2014 2015 2016 2017 2018
• CLS220d CLS350d BlueTEC diesel
• CLS400 CLS550 CLS63 AMG Petrol Gasoline
• E klase W212 Sedanas Facelift
• 2013 2014 2015 2016
• E klase S212 Universalas Facelift 2013 2014 2015 2016
• E klase C207 Kupe Facelift 2013 2014 2015 2016
• E klase A207 Kabrioletas Facelift 2013 2014 2015 2016 2017
• E200 E220d E250d E300 E350d E400 E550 4MATIC CGI BlueEFFICIENCY CDI BlueTEC AMG Line
• GLE W166 Facelift
• 2015 2016 2017 2018 2019
• GLE Coupe C292 Coupe
• 2015 2016 2017 2018
• GLE300d GLE350d 4MATIC BlueTEC AMG Line
• GLS X166
• 2015 2016 2017 2018
• GLS350d GLS450 GLS500
• Vito W447 Tourer 2014 2015 2016 2017 2018
• V220d V250d
• W447 EQV Facelift
• 2020 2021 2022 2023
• EQV300 EV Electric Vehicle
